Daily cleaning for FibMax fusion splicer

Daily cleaning

There are mainly two parts need daily cleaning: V-groove and

Microscope Lens:

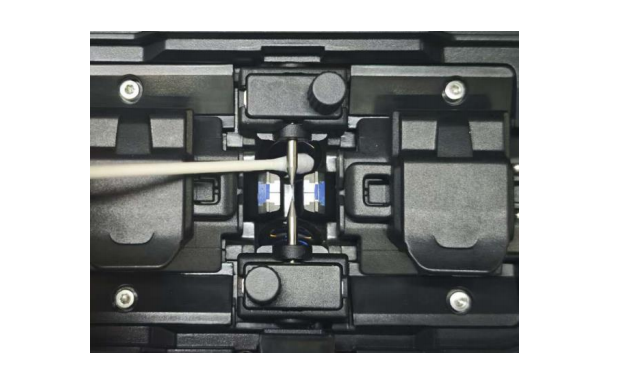

1. When cleaning the V-groove, follow these steps:⚫ Wipe the bottom of the V-groove with a small cotton swab

dipped by alcohol;

⚫ Suck the remaining alcohol in the V-groove with a dry

cotton swab;

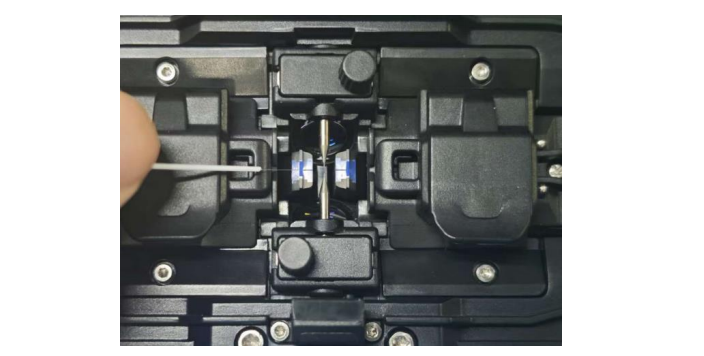

⚫ Jab out the dirt in the V-groove with the end part of a

cleaved fiber.

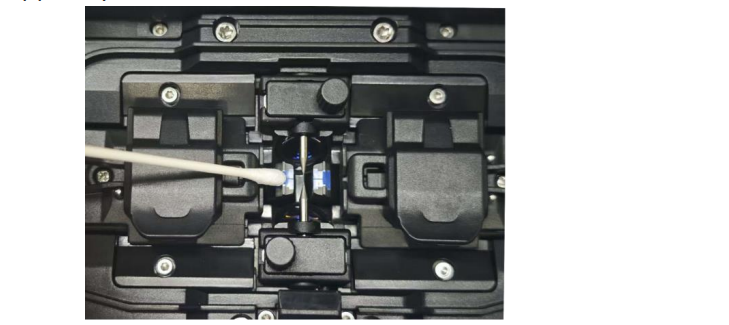

2. When cleaning the microscope lens, follow these steps:⚫ Wipe the surface of the microscope lens with a small cotton

swab dipped by alcohol;

⚫ Suck the remaining alcohol on the surface of the

microscope lens with a dry cotton swab.
